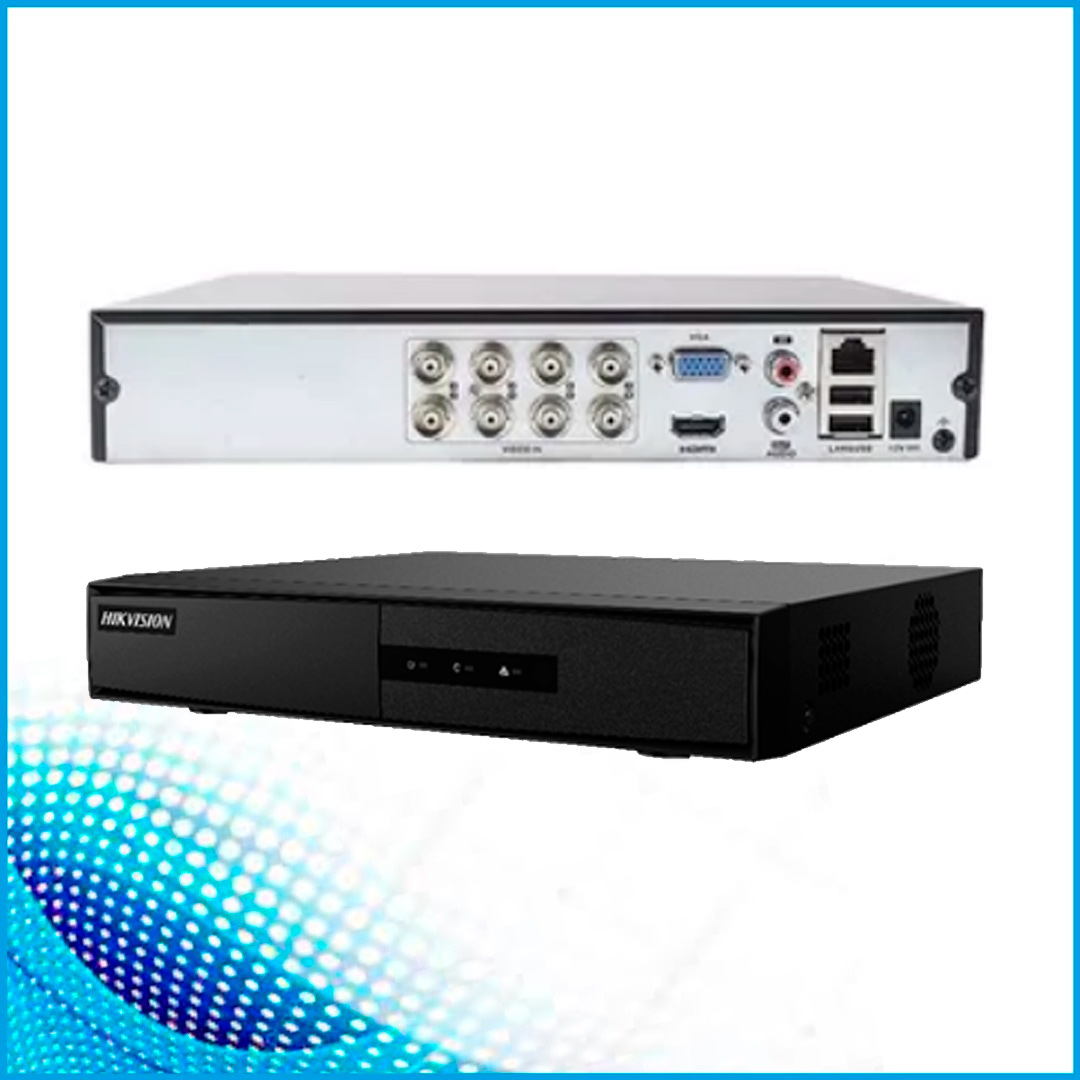

DS-7208HGHI-M1 | DVR HIKVISION 8 CANALES + 2IP, 1080 LITE

Descripción

DVR HIKVISION 8 CANALES + 2 IP, 1080LITE. GRABACIÓN H.265 +. 1 DISCO HASTA 6TB, 1 AUDIO

Características

Video/Audio Input
– Audio Input: 1-ch
– Video Compression: H.264,H.264+
– Analog and HD-TVI video input: 8-ch BNC interface (1.0Vp-p, 75 Ω)
– Supported camera types: Support HDTVI input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz,
Support AHD input: 720P/25Hz, 720P/30Hz,
support CVBS input
– IP Video Input: 2-ch Up to 2MP resolution
– Video Input Interface: BNC (1.0 Vp-p, 75Ω)
– Audio Compression: G.711u
– Audio Input Interface: RCA (2.0 Vp-p, 1 kΩ)
– Two-way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input)
Video/Audio Output
– HDMI/VGA Output: 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
– Recording resolution: When 1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIF;
When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF
– Frame Rate: Main stream:
When 1080p Lite mode not enabled:
For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Video Bit Rate: | 32 Kbps ~ 4 Mbps
Stream Type: | Video/Video&Audio
Audio Output: | 1-ch RCA(Linear, 1kΩ)
Audio Bit Rate: | 64kbps
Dual Stream: | Support
Playback Resolution: | 1080p lite/720p/WD1/4CIF/VGA/CIF
Synchronous Playback: | 8-ch
Network management
Remote connections: | 128
Network protocols: | TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Hard Disk Driver
Interface Type: | 1 SATA Interface
Capacity: | Up to 6 TB capacity for each disk
External Interface
Network Interface: | 1; 10M / 100M self-adaptive Ethernet interface
USB Interface: | 2 USB 2.0 Interfaces
General
Power Supply: | 12V DC
Consumption: | ≤ 12W(without hard disks)
Working Temperature: | -10 ºC ~+55 ºC (14 ºF ~ 131 ºF)
Working Humidity: | 10% ~ 90%
Chassis: | 1U chassis
Dimensions: | 260 × 222 × 45mm (10.2 × 8.7 × 1.8 inch)
Weight: | ≤ 1 Kg (2.2 lb) (without hard disks)

Soporte

3 AÑOS DE GARANTÍA en todos los productos Hikvision, ofrecida por el fabricante, contra defectos de fabricación y/o vicios del material que afecten al normal funcionamiento del mismo.
